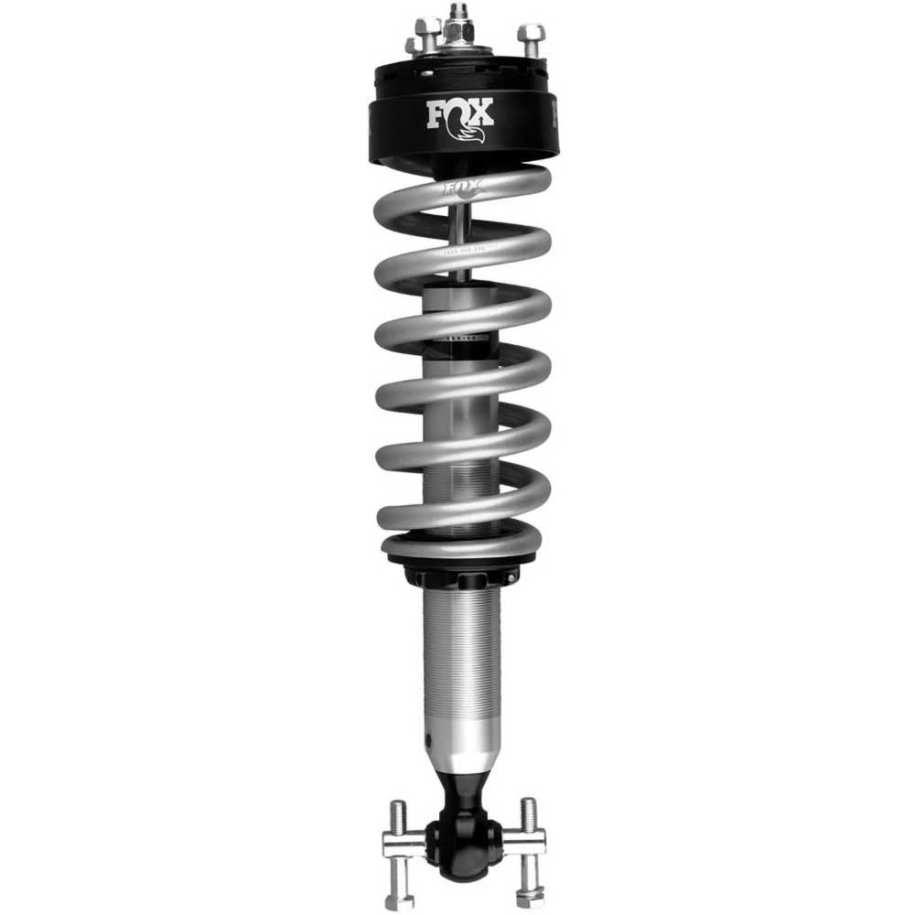

Front nitro Coilover FOX Performance 2.5 IFP HD Tune Lift 0-3"

• Body: 2.5” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Internal IFP mono-tube design
• Body Plating: Clear-anodized for a durable finish
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: Large diameter, heavy-duty spherical

Dimensions:

• Extended: 20,43"
• Compressed: 15,31"
• Travel: 5,12"

Mounts:

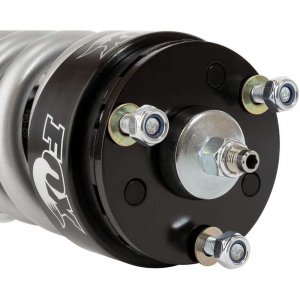

• Top mount: oem
• Bottom mount: bar pin

Notes:

• When adjusting shock height for a lift over 2”, the installation of extended front upper control arms is recommended
• The HD Tune will work just fine with 200 kg of added weight to entire vehicle, though it will operate with a relatively soft setting. Only at a load of around 500 kg with setting the DSC adjuster to the middle of its adjustment range will allow for the widest range of real-world use cases
