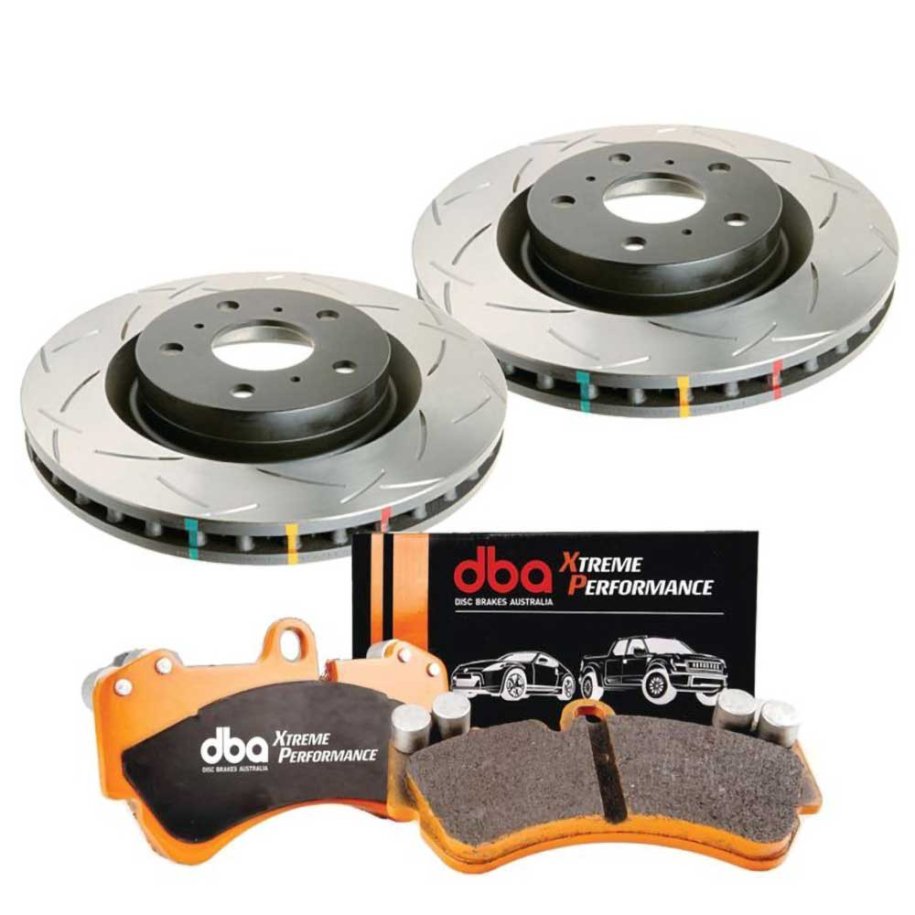

Front brake kit DBA T3 4000 Xtreme Performance

• Improved braking performance over factory brake system
• On and off road performance
• Perfect for heavier vehicles (pick-up, towing and overloading)
• Slotted rotors offer better heat dissipation than smooth rotors
• Highest quality pads
• Perfectly matching and extensively tested combination of disc and pad
• Excellent performance at high temperatures
• Best choice for cars with oversized wheels

Brake discs specs:

• T3 Slot 48 precision CNC machined slots
  • Tri-Symmetrical curve slots dampens the vibration harmonics or noise
  • Increased number of out-gassing exit points for brake pad friction gasses to escape through
  • Universal slot design
  • A quieter, responsive and smoother brake pedal feel
  • Increases the consistency and effectiveness of every brake stop
  • Eliminates the need for left and right discs
• Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
  • Increased surface area resulting in greater heat dissipation
  • Minimises brake fade and increases braking effectiveness
  • Prolongs service life for both pads and rotors, reduces mechanical damage and associated costs
• XG150 high carbon alloyed iron
  • An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time
  • Minimises warping and cracking and prolongs the service life of the rotor
• Thermographic temperature monitoring
  • Heat paint markings change colour at specific temperature thresholds
  • When temperature thresholds are exceeded paint markings will permanently change colours
  • Offers the driver a clear indication of peak braking temperatures
  • Allows the driver to monitor rotor fatigue and decide on rotor replacement
• Paint protection on non-friction areas
  • Enhances appearance
  • Stops any unsightly rust formation

Brake disc dimensions:

• Diameter: 320mm
• Height: 38,5mm
• Thickness: 28mm
• Inner Diameter: 68mm
• Number of holes: 6

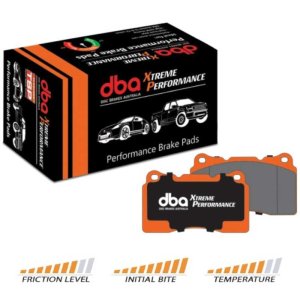

Brake pads specs:

• Semi-metallic, carbon fibre friction material
• G-G Class Friction (0,45 average mu from low to high temperatures)
• Excellent high temperature performance
• Optimal braking consistency up to 550? (1022?)

Brake pads dimensions:

• Width: 163,6mm
• Height: 54,1mm
• Thickness: 15,9mm

In the box:

• (2) Front discs
• Front full brake pads kit

Fitment:

• Nissan Navara 2005-2014 | Front | 2.5 TD
