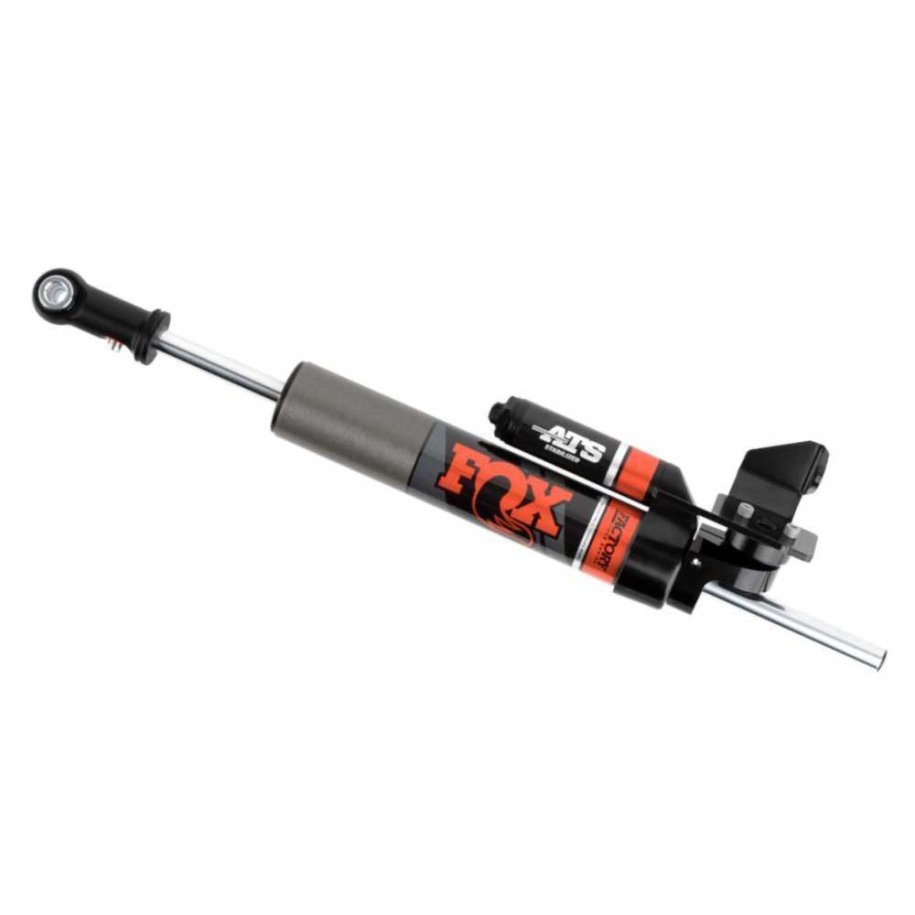

Steering stabilizer FOX Factory Race 2.0 IFP Reservoir adjustable ATS

• Body: 2,0” impact extruded and CNC machined 6061-T6 clear anodized aluminum body resists rust over time
• Body: Plating Hard-anodized for a durable finish
• Reservoir: External reservoir design separates shock oil from the high-pressure nitrogen
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston:Race-developed high-flow piston design
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bushings: Quiet nitrile rubber allows for increased suspension articulation
• Adjustments: Adjuster - 24 clicks of adjustability
• Adjusting screw for resistance and damping of the steering system

Dimensions:

• Extended: 23.20"
• Compressed: 15.10"
• Travel: 8.10"

Mounts:

• Top mount: axle mount
• Bottom mount: eyelet

Notes:

• For models 21-present requires aftermarket steering stabilizer mounting bolt. We recommend K06510774AA (sold separately)
