R\/DRAWER KITCHEN 950 KITCHEN KIT COMPLETE SINGLE

SLIDE KITCHEN

You've all heard the line before: ÔÇ?It's got everything but the kitchen sink.ÔÇ? Well, at ARB 4x4 Accessories, we like to consider ourselves a solutions-based business, so here it is, the fully on-board, integrated and perfectly practical ARB Slide Kitchen wagon edition, complete with a sink! and now a spice rack. While contained within an ARB modular drawer frame, the Slide Kitchen is not a drawer but a complete, stainless steel, slide-out kitchen with bench space, a three-burner cooktop, kitchen sink and its very own utensils drawer and spice rack. While some 4WD accessories are downright practical, others are downright cool. This one, well, I guess you'd have to call it practi-cool. Ah, Dad jokes! But bad puns aside, what an awesome product to have in the back of your tourer.

The ARB Slide Kitchen has been designed specifically to be integrated with existing ARB drawer installations. The new modular unit is built to the same dimensions of our existing full height 1045-millimetre deep (Large wagon) modular drawer profile. The Slide Kitchen slots right in and can be accompanied by any of ARB's roller (RF), mid height (RFH) or full-height drawers (RD\/RDRF), and finished off with existing vehicle-specific side panels. That said, of course, the Slide Kitchen can be installed independent of any other drawer as a stand-alone unit for use in custom builds such as vans, camping canopies, service bodies and camper trailers.

The three-burner stove is designed and manufactured in England by the reputable appliance manufacturer Thetford. The burners are housed & protected by a toughened glass lid within a recessed stainless-steel dish, providing its own level of wind protection and easy clean-up. The stove is suitable for pans or pots up to 22 centimeters for the larger rapid burner and up to 11 centimeters for the two smaller burners. Includes safety features being automatic flame out if the burners go out and auto off when the lid is shut. Gas is delivered via a quick-connect bayonet gas connector, which can only be connected after set-up and has to be disconnected to store, further improving the safety of this device as a whole. The stoves are all 100% tested to strict quality control to ensure its ultimate safety before leaving the plant in England.

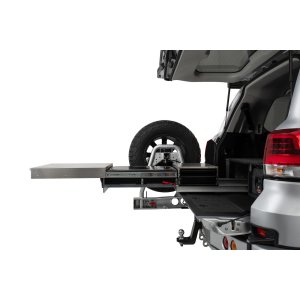

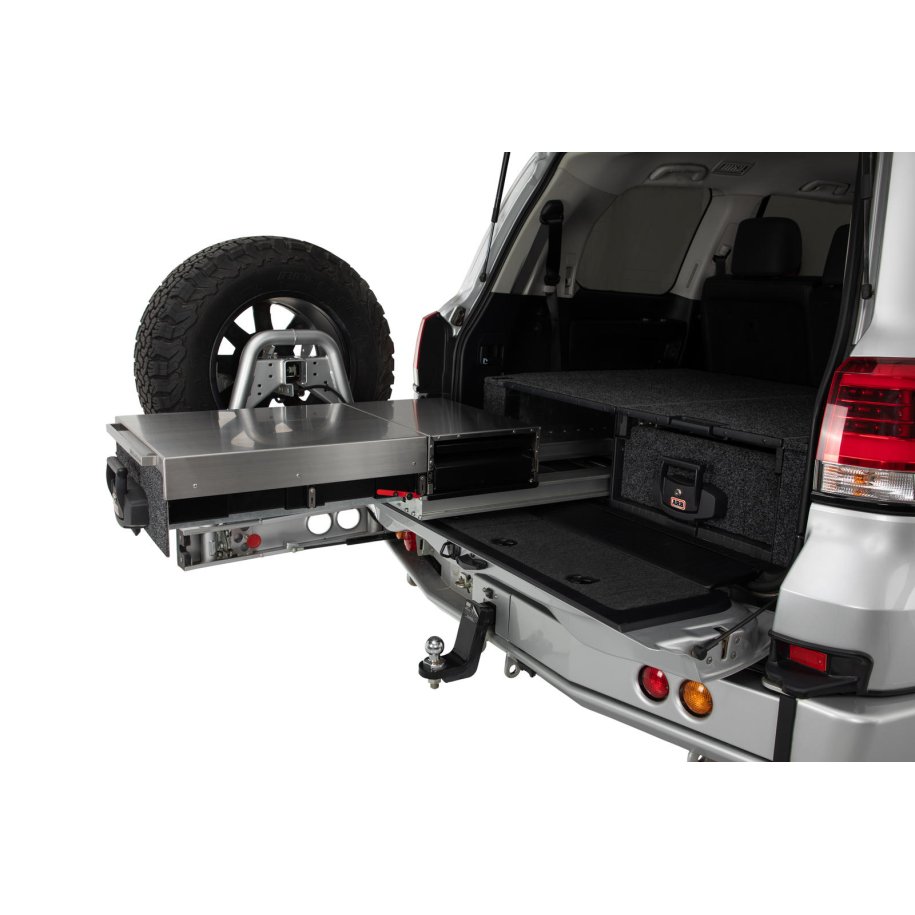

Accessing the kitchen is no different to opening any ARB drawer; you simply pull the mechanical latch and roll the 950-millimetre stainless steel bench out. Once fully extended, the bench locks into place and you can operate the kitchen as a simple bench top with drawer or keeping sliding the stainless top out to reveal the hidden 3 burner stove. With the 1045 version clip on sink and spice racks can be added and removed at any time. Want the kitchen on the other side, simply unbolt the hob box and you're cooking on the other side.

The ARB Slide kitchen is manufactured and assembled in house to ARB strict quality control. ARB source the drawer cabinet with ARB's engineered runners from our existing drawer manufacture and the stove from Thetford in England. ARB manufacture the wagon kitchen module and assemble the entire unit in house.

FEATURES:

• Suitable to fit with any RD\/RFH\/RF & RDRF 1045 Drawers. Integrates as a normal drawer would.
• Fits with current vehicle specific side floor kits with current carpet matching for a seamless fit.
• Follows normal installation instructions as a 1045 drawer would install by.
• Engineered alloy extruded over extension runners, without need for a supporting leg.
• Red highlighted user interaction points, Quick 15 second setup.
• Lock\/lock out functions similar to current ARB drawers.
• 304 Stainless steel kitchen grade bench top 505 wide x 930mm. long.(19.88ÔÇ? x 36.61ÔÇ?) ÔÇô Sliding separate top ÔÇô 505 x 605mm (19.88ÔÇ? x 23.81ÔÇ?).
• Thetford Stove ÔÇô Argent 3 burner MK3 stove, - Made in England & AGA approved.
• 2 x 1.75kw & 1 x 2.5kw Rapid Burner, suitable for 22cm pans\/pots for large burner and 11cm for smaller burners, 20,472BTU total burners.
• Quick Connect AGA approved & sourced POL hose 1.2m with approved regulator.
• Safety features included, flame out technology & lid close gas shutoff.
• Electronic ignition & securely mounted burners for travelling.
• Easy clean stainless surfaces all matching throughout. ÔÇô 20Kg loading on Stove.
• 7L Collapsible silicone sink with plug.10kg Sink loading, up to 90-¦(194-¦F rated).
• Sink platform is preloaded to handle up to 10kg of weight.
• Main stainless surface can hold a maximum weight of 25kgs evenly spread across the top closed. 10kg open.
• Internal Drawer dimension 290mm x 450mm x 110mm ÔÇô fits sink, hose and cutlery holder plus more.
• Suitable Gas ÔÇô Std Australian BBQ Gas & ULPG.
• Compliance for Australian & New Zealand markets, please speak with your ARB dealer to express interest for your country.
• Replaceable drawer accessory, turns the RDK1045 back into a shallow drawer.
  • PN# RDK1045DR
• Not Just for touring, great to use at sports carnivals, tailgating, day trips, trade sites and general touring.

Dimensions

• RDK1045 - Exterior Dimensions -1045 x 530 x 280mm (41.14 x 20.8 x 11.02ÔÇ?).
• RDK1045 - Stainless top Dimensions Total ÔÇô 930 x 505mm - Holds 25kg weight evenly spread.
  • Small Stainless section ÔÇô 505 x 325mm (19.88ÔÇ? x 12.79ÔÇ?).
  • Large Stainless section ÔÇô 505 x 605mm (19.88ÔÇ? x 23.81ÔÇ?).
• RDK1045 - Internal small Drawer dimensions ÔÇô 290mm x 450mm x 110mm (11.41ÔÇ? x 17.71ÔÇ? x 4.33ÔÇ?).
• 72kg (158lbs).
