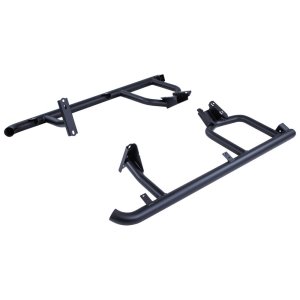

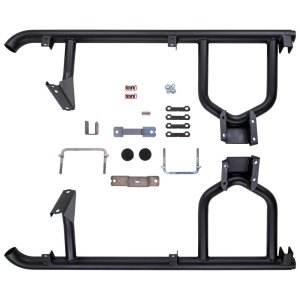

SUMMIT STEP 76 WAGON MY24 ON MT BK REQUIRES 4412870/880

SUMMIT SIDE STEPARB side protection equipment acts as a shield for your vehicle's vulnerable side panels, protectingthem from rocks and road debris frequently encountered during remote area travel. For thosecustomers who either don't have an ARB front bar or don't require a front rail, a return has beendeveloped to enable fitment of a protection step.The design registered clamp offers a neat and practical solution to connect the 60.3mm side rail tothe upright of the ARB Summit Bar. Two spacers are included in the fitting kit to allow for differenttube lengths due to variances in bar to chassis tolerances. The ARB branded cover also allows foradjustment in the side rail to upright positioning. FEATURES: \tDesign suits the Series 5 Nissan Patrol Y62. Series 4 will fit sidestep only with return, NOTE:front rail does NOT fit Series 4• Registered design of styling and design components\t Durable steel construction for maximum protection. Step, rail and return tube is +? 60.3mm\tMounts to the vehicle chassis at three points per side. Front and rear mounts utilise welded mount bracket assemblies that attach to the vehicle chassis with nut plates and M10 fasteners• Compatible with side curtain airbags• Anodised step extrusion featuring ridges for additional grip• Template provided for drilling of the central mount bolt. Compatible with Summit Side Rail Drilling Jig (refer PIB No.554)\tApproximate weight of step section 4427010 is 29kg, front rail 4427020 is 24kg, return 4427030 is 7kg. Approximately 8kg is removed for fitment\tMetaprep primer for additional corrosion resistance\tFinished in matt black powder coat with the option to colour code to vehicle colourANODISIED STEP EXTRUSIONA silver anodised extruded aluminium section with front to rear ridges is supplied with the frontsection selected. The extrusion supplied with the front rail section is supplied as separate left- andright-handed sections.
