Suspension kit BDS with NX2 shocks Lift 4"

• Heavy-duty 1/4-inch thick steel crossmembers for maximum ground clearance
• Front skid plate system adds undercarriage protection and structural rigidity
• CNC-machined ductile iron steering knuckles maintain proper geometry and ESC functionality
• NX2 Nitro shocks with nitrogen-charged twin-tube design for superior dampening
• 10-stage velocity-sensitive valving for on-road and off-road adaptability
• Rear lift blocks and dual-welded u-bolts for a secure and durable lift
• Accommodates up to 35” tires for enhanced capability and a bold stance

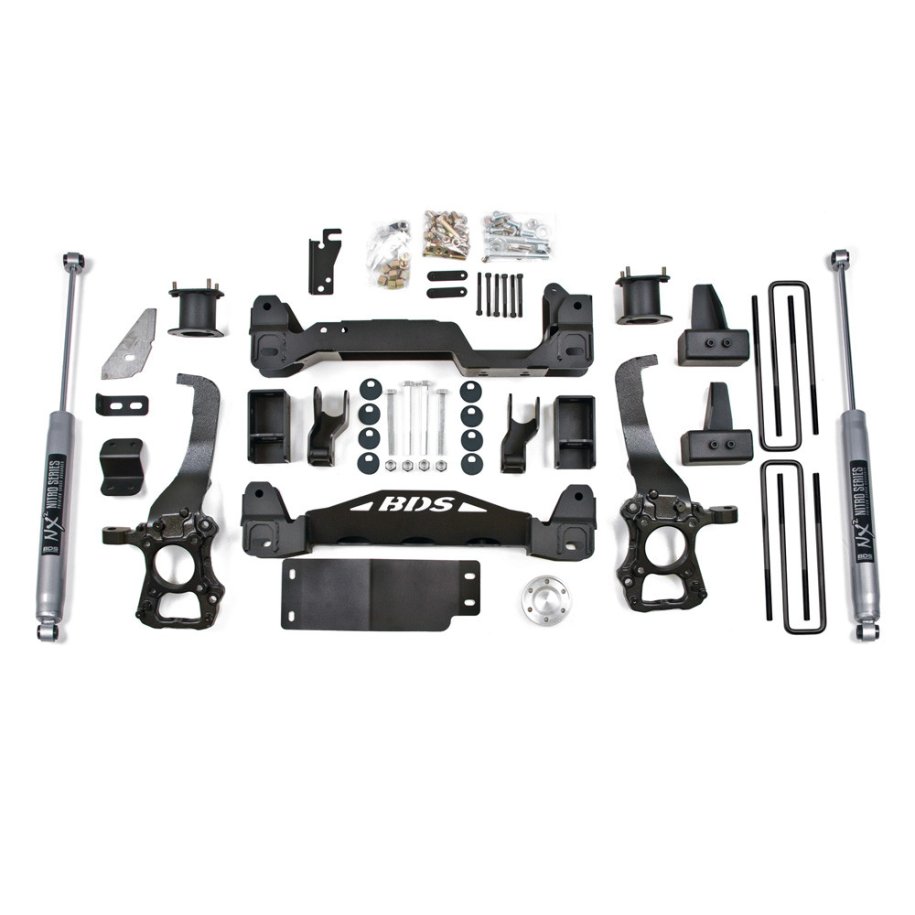

In the box:

• (2) NX2 nitro shock rear Lift 4"
• (2) Knuckle
• Front cross member
• Rear cross member
• (2) Differential drop bracket
• (2) Differential support bracket
• Diff skid plate
• (2) Sway bar drop
• Drive shaft spacer
• (2) 4" Strut spacer
• (2) 4" Offset rear block
• (4) U-Bolt
• Brake line bracket
• Hardware

Notes:

• 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire
• 18" wheels with 5-5,5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5,5" backspacing is highly recommended for tire-to-frame crash bar clearance
• Models with 2-piece rear driveshaft will require carrier bearing shim kit BDS122406 (sold separately)
• Block kits replace factory 1-1/4" block. The stock block will not be reinstalled
• Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety
• Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends having this performed prior to installing the lift
• Will not work with models with CCD (Continuous Controlled Damping)
• Requires frame bracket modification
• Will not work with Diesel models
• Will not fit Tremor and Raptor models
• Fits 4WD models only
• Max wheels size:
  • 35 x 12,5 with 18 x 9 and 5" backspacing. May require trimming
  • 35 x 12,5 with 20 x 9 and 4,5" backspacing. May require trimming
  • 37 x 12,5 with 20 x 9 and 5,5" backspacing. May require trimming
