Suspension kit BDS with shocks FOX Lift 4"

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX performance series IFP gas shocks to improved ride and offroad performance
• Allows clearance for 33" tyres

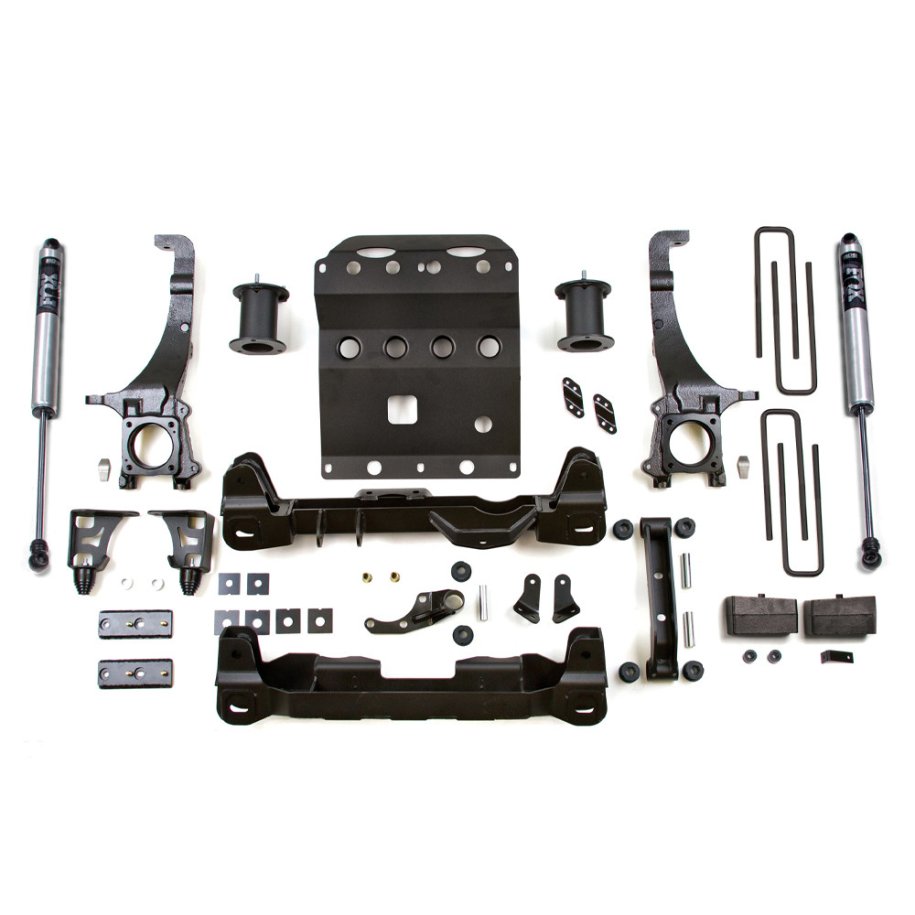

In the box:

• Front strut spacers
• Front crossmember
• Front brake line relocation brackets
• Rear crossmember
• Rear brake line relocation brackets
• Rear blocks
• (2) Rear nitro shock FOX Performance 2.0 IFP
• Differential relocation brackets
• Skid plate
• Steering knuckles
• Sway bar drops
• Bump stop extensions
• Octo-cam washers
• (4) U-bolt
• Hardware

Notes:

• Does NOT fit to TRD Pro Models
• Minor welding required
• Requires frame bracket modification
• Stock wheels cannot be reinstalled
• System will work on 2WD PreRunner models
• Can not use 17" wheels
• Recommended tyres & wheels
• 33 x 12,5 z 18 x 9 i 4,5" (Trimming may be required)
• 33 x 12,5 z 20 x 9 i 4,5" (Trimming may be required)
