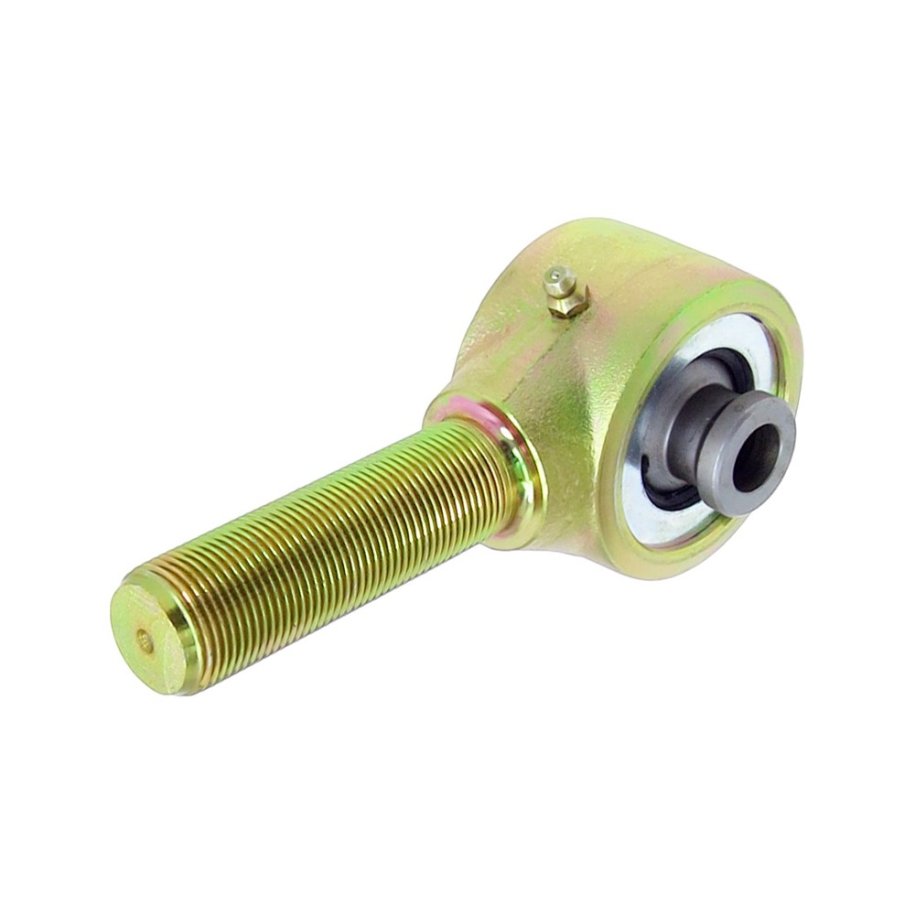

Forged narrow rod end with 2.5" Johnny Joint - 1" 14 RH Thread, 2.625" x 0.562 Pivot Ball Clayton

• Articulation angle: Up to 39°, allowing flexible movement in demanding applications
• Material: Durable forged steel construction for high strength and long life
• Outer barrel size: 2 1/2 inch / 6,35 cm (outer diameter) × 1.69 inch / 4,29 cm (width)
• Thread: 3.25 inch / 8,26 cm of 1 inch – 14 RH (right-hand) threads
• Overall length (center to end): 4.94 inches / 12,55 cm from the center line (CL) of the joint to the end of the threads
• Internal construction: One-piece bushing design for improved strength and reliability
• Pivot ball size: 2.625 inch / 6,67 cm (width) × 0.562 inch / 1,427 cm (through-hole diameter)
• Lubrication: Equipped with a zerk fitting, making greasing quick and easy
• Installation: Fully assembled – ready for use right out of the box

Dimensions:

• Thread: 1"-14
• Width: 2,365" / 6,00 cm
• Thru bolt hole: 9/16" / 1,4 cm

Notes:

• Johnny Joints require non-synthetic, hi-moly lube grease
• Joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!
• Fits to Clayton Off Road control arm CL1809103, CL1908030 only
