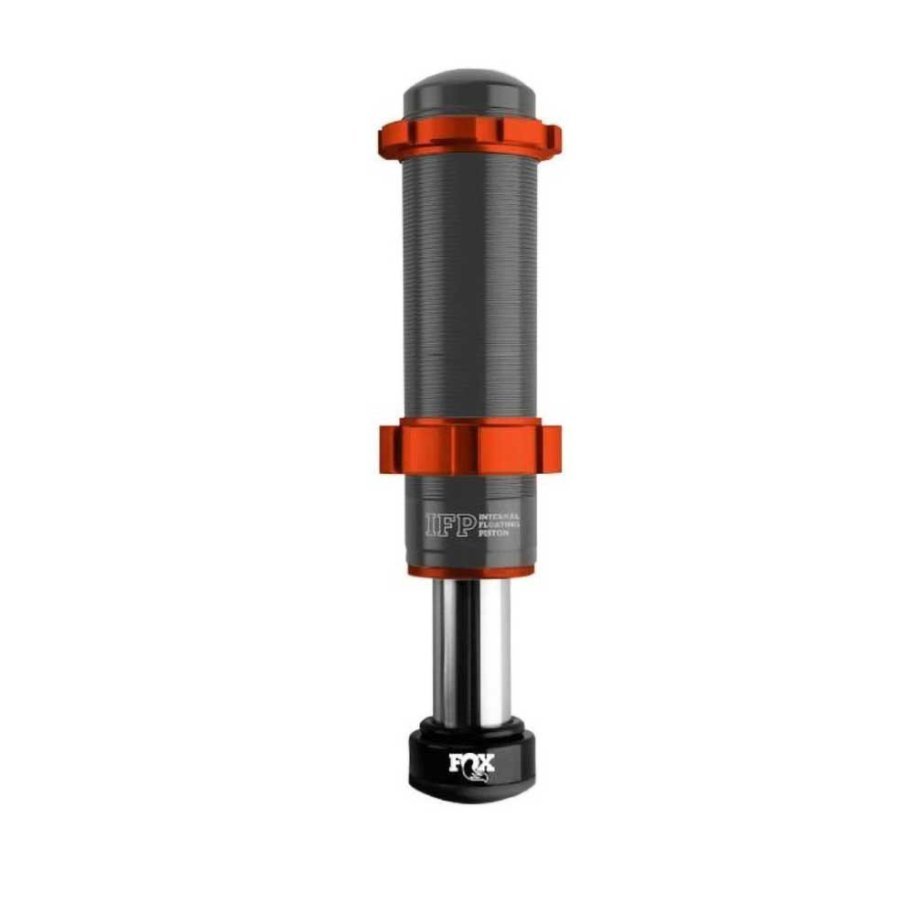

Rear bump stop Fox Factory Race 2.0 IFP

• Body: Threaded, impact extruded, black anodized, CNC machined 6061-T6 billet aluminum. Surface is three times harder than standard aluminum and increases durability
• Pad: Replaceable Delrin® strike pad adds additional protection from debris or dust
• Shaft: Hard chrome plated 1-1/4" 4130 steel with Internal Floating
• Piston: (IFP) separates the oil and nitrogen to prevent cavitation and bucking, heavy-duty powdered steel
• Fox Air Valve (FAV) - located at the bottom of the shaft for easy access to change the pressure and thanks to that change the bottom-out resistance
• Seals: contains main seal, wiper seal, scraper seal. Better protection from debris or dust
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures adjustments

Dimensions:

• Extended: 10.03"
• Compressed: 8.18"
• Travel: 1.85"

Notes:

• Requires cutting off a factory frame bumpstop mount
• Requires welding in new bump stop holder
• FOX IFP Bump Stop holder included

Mounts:

• Top mount: eyelet
• Bottom mount: eyelet
