Air Suspension Links set Revel Performance Lift 2,5" Air Ride

• Provides up to 2,5" of front lift
• Compatible with RAM 1500 DT models equipped with air suspension
• Maintains full use of factory ride modes and dashboard presets
• CNC-machined aluminum with silicone couplers for strength and reliability
• Direct-fit using factory ball studs - no modifications required
• Improves clearance for 35 × 12.50 R20 tires on OEM wheels (offset dependent)
• Fully adjustable to allow for fine-tuning of your truck's ride height

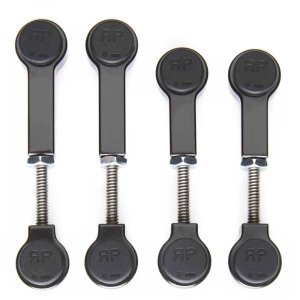

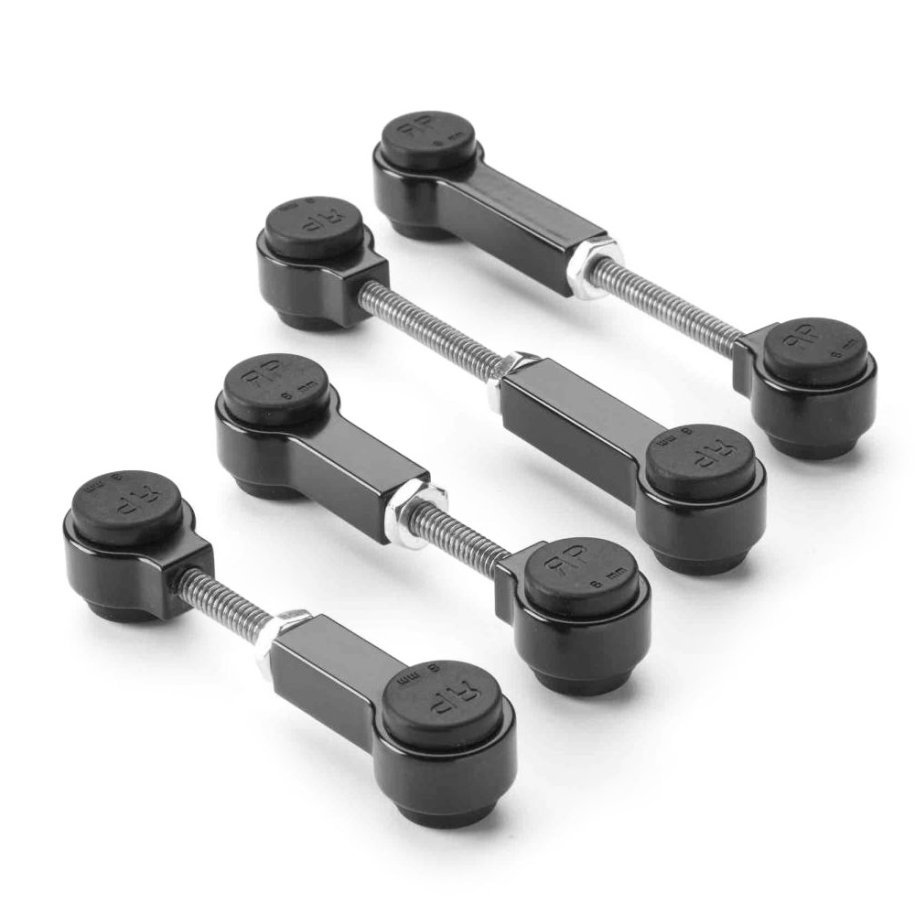

In the box:

• (2) Front Link
• (2) Rear Link

Notes:

• The links are not pre-set:
  • Front links should be set so that they are slightly shorter than the original ones
  • Rear links should be set so that they are slightly longer than the original ones
• Shorter links from the set should be installed at the front of the vehicle, while longer ones should be installed at the rear.
• Lifting above 2.5" may result in a payload warning and restrict the use of the off-road 2 suspension setting. An alignment may be required to maximize performance of the links when using off-road 2 as your normal ride height
• Revel Links trigger a change in voltage within Ram truck's factory air suspension system. When the length of links is shortened on the front and lengthened on the rear, the truck's onboard computer registers a ride height below factory settings and compensates by generating an additional 2.5" of lift. Sounds complicated, but it's actually really simple
