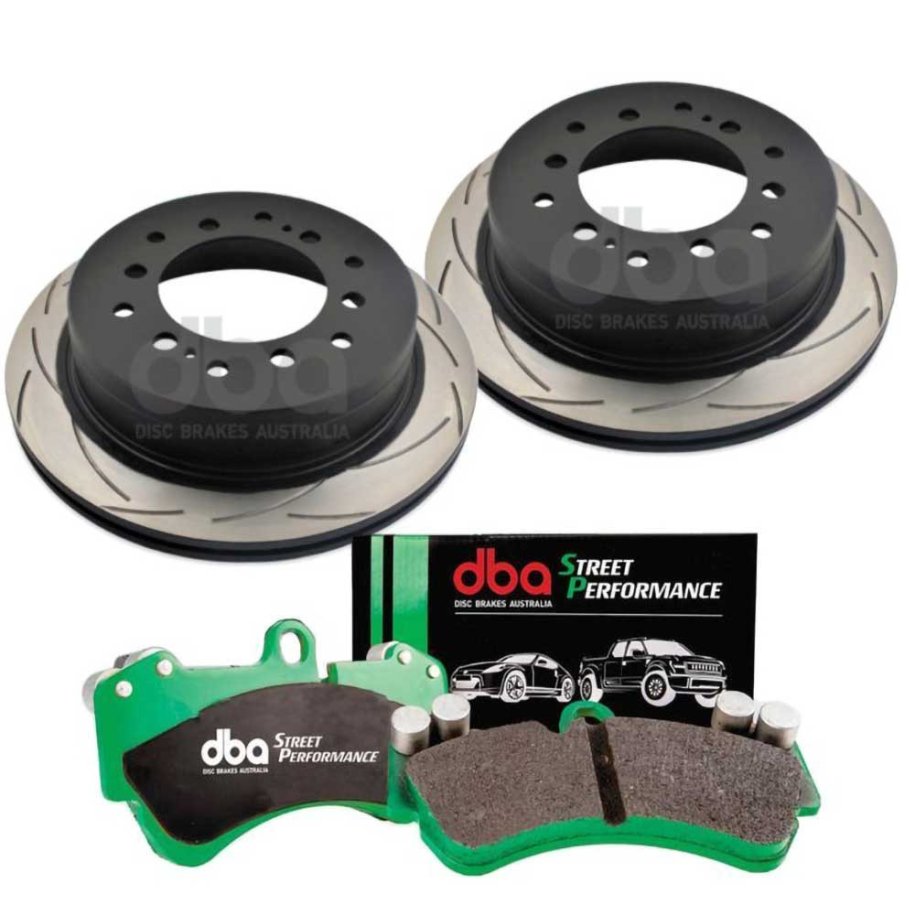

Rear brake kit DBA T2 Street Performance

• Improved braking performance over factory brake system
• Street performance and occasional track day suitable
• Slotted rotors offer better heat dissipation than smooth rotors
• Perfectly matching and extensively tested combination of disc and pad
• High quality
• Excellent performance at high temperatures

Brake discs specs:

• T2 precision CNC machined slots
  • Bi-symmetrical curve slots resulting in a quieter, more responsive and smoother brake pedal feel
  • Increased number of out-gassing exit points for brake pad friction gasses to escape through
  • Universal slot design
  • Increases the consistency and effectiveness of every brake stop
  • Eliminates the need for left and right discs
• Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
  • Increased surface area resulting in greater heat dissipation
  • Minimises brake fade and increases braking effectiveness
  • Prolongs service life for both pads and rotors, reduces mechanical damage and associated costs
• XG150 high carbon alloyed iron
  • An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time
  • Minimises warping and cracking and prolongs the service life of the rotor
• Thermographic temperature monitoring
  • Heat paint markings change colour at specific temperature thresholds
  • When temperature thresholds are exceeded paint markings will permanently change colours
  • Offers the driver a clear indication of peak braking temperatures
  • Allows the driver to monitor rotor fatigue and decide on rotor replacement
• Paint protection on non-friction areas
  • Enhances appearance
  • Stops any unsightly rust formation

Brake disc dimensions:

• Diameter: 312mm
• Height: 68mm
• Thickness: 18mm
• Inner Diameter: 106mm
• Number of holes: 6

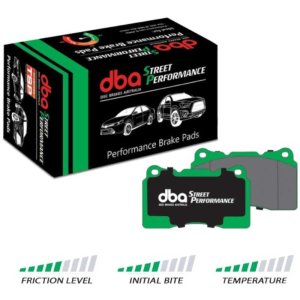

Brake pads specs:

• ECE R90 Certification
• Semi-metallic friction material
• F-F class friction (0,35 average mu from low to high temperatures)
• Consistent friction at high temperatures
• Optimal braking consistency up to 438?C (820?F)

Brake pads dimensions:

• Width: 116,3mm
• Height: 44,1mm
• Thickness: 15,5mm

In the box:

• (2) Rear discs
• Rear full break pads kit

Fitment:

• Toyota Land Cruiser (97-2002) | Rear | 2.7 (RZJ90)
• Toyota Land Cruiser (97-2002) | Rear | 2.7 (RZJ95)
• Toyota Land Cruiser (2003-2009) | Rear | 3.0 TD (KDJ120)
• Toyota Land Cruiser  (2003-2009) | Rear | 3.0 TD (KDJ125)
• Toyota Land Cruiser (2000-2003) | Rear | 3.0 TD (KDJ90)
• Toyota Land Cruiser (2000-2003) | Rear | 3.0 TD (KDJ95)
• Toyota Land Cruiser (96-2001) | Rear | 3.0 TD (KZJ90)
• Toyota Land Cruiser (96-2001) | Rear | 3.0 TD (KZJ95)
• Toyota Land Cruiser (96-2002) | Rear | 3.4 (VZJ90)
• Toyota Land Cruiser (96-2003) | Rear | 3.4 (VZJ95)
• Toyota Land Cruiser (2003-2008) | Rear | 4.0 (GRJ120)
